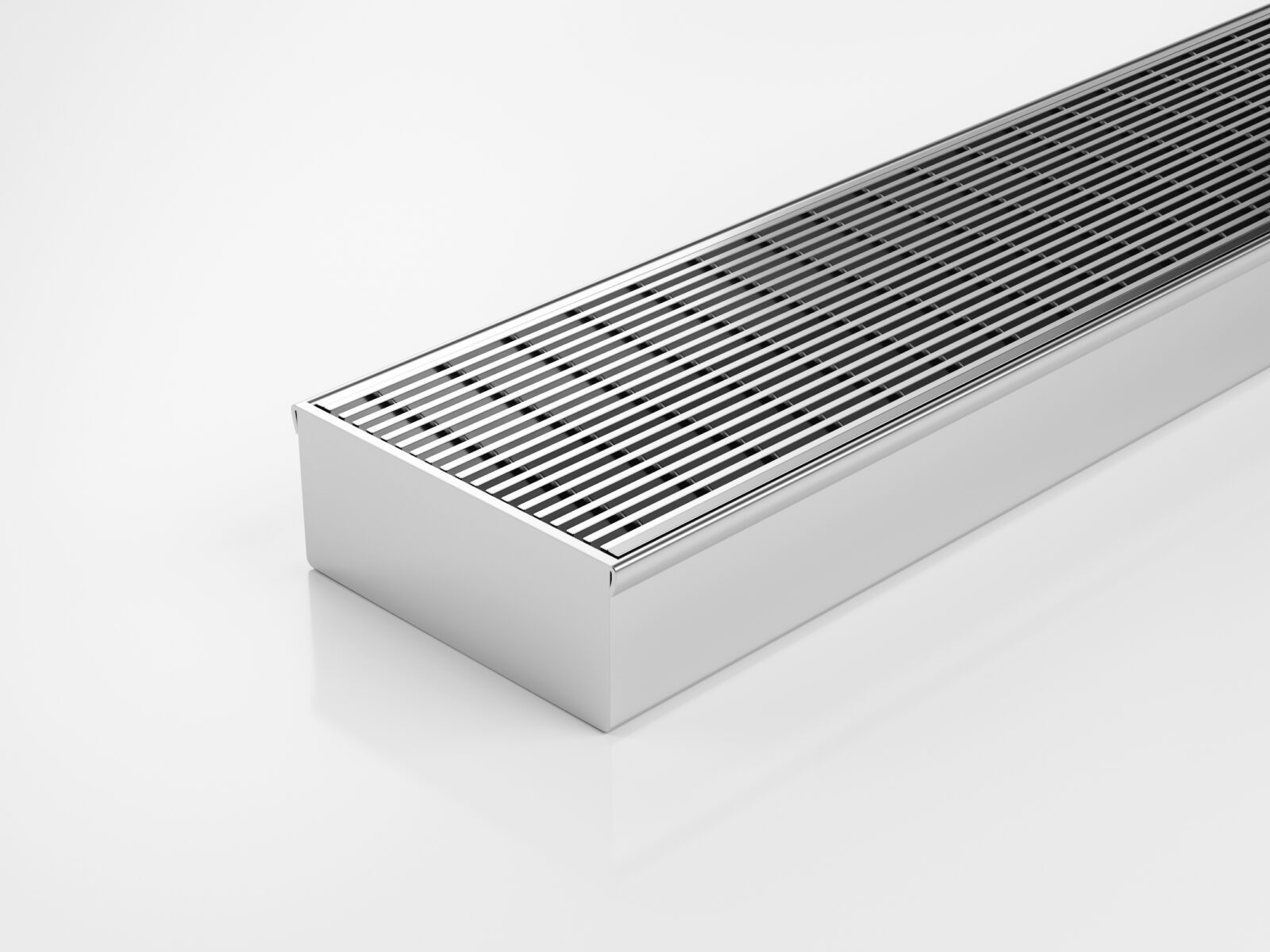

Stainless steel linear drain grate and channel system designed for architectural applications. Suitable for internal and external wet areas. Constructed from low carbon 316 marine grade stainless steel, for durability, corrosion resistance and a clean, minimalist appearance. Made to specified length with specified outlet position.
| Product Code | 100ARi40MTL |
| Range | 100mm |
| Kit Type | Made to length |

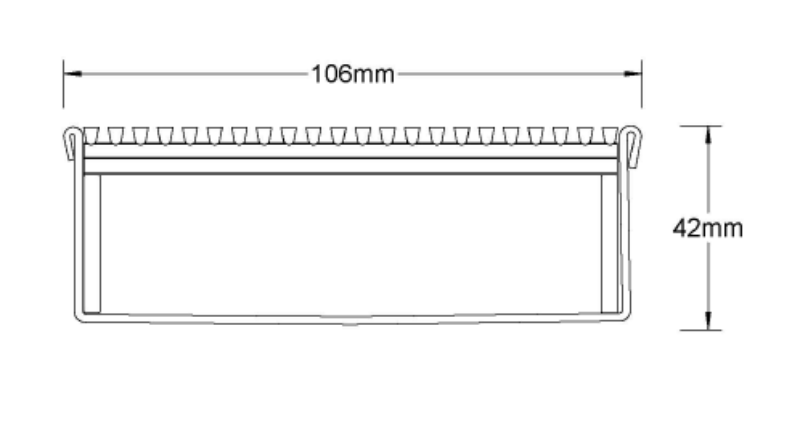

| Channel Width | 106mm |
| Channel Depth | 42mm |
| Channel Material | Stainless Steel |
| Greentag | |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/-2mm tolerance on dimensions. Electroplate finishes are subject to natural variation with time and local environment. Factors such as pools/surf beaches may require electropolishing. Contact us for suitability.
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Bathroom Guide |
||
| 100i40 Bathroom Guide | (230.8 KB) | download Download |
Concrete Guide |
||
| 100i40 Concrete Guide | (189.3 KB) | download Download |
Threshold Guide |
||
| 100i40 Threshold Guide | (116.6 KB) | download Download |
Timber Floor Guide |
||
| 100i40 Timber Guide | (143.1 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Made To Length | (913.2 KB) | ZIP | download Download |
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
| File | File Size | Download |
|---|---|---|
| Stormtech MTL Order Form | (412.8 KB) | download Download |
| Stormtech MTL Multiple Outlets Order Form | (539.9 KB) | download Download |
Suitable for indoor and outdoor applications
Made with low-carbon 316 marine grade stainless steel
Ideal for creating step-free shower entries, and simple falls
Compatible with large format tiles
