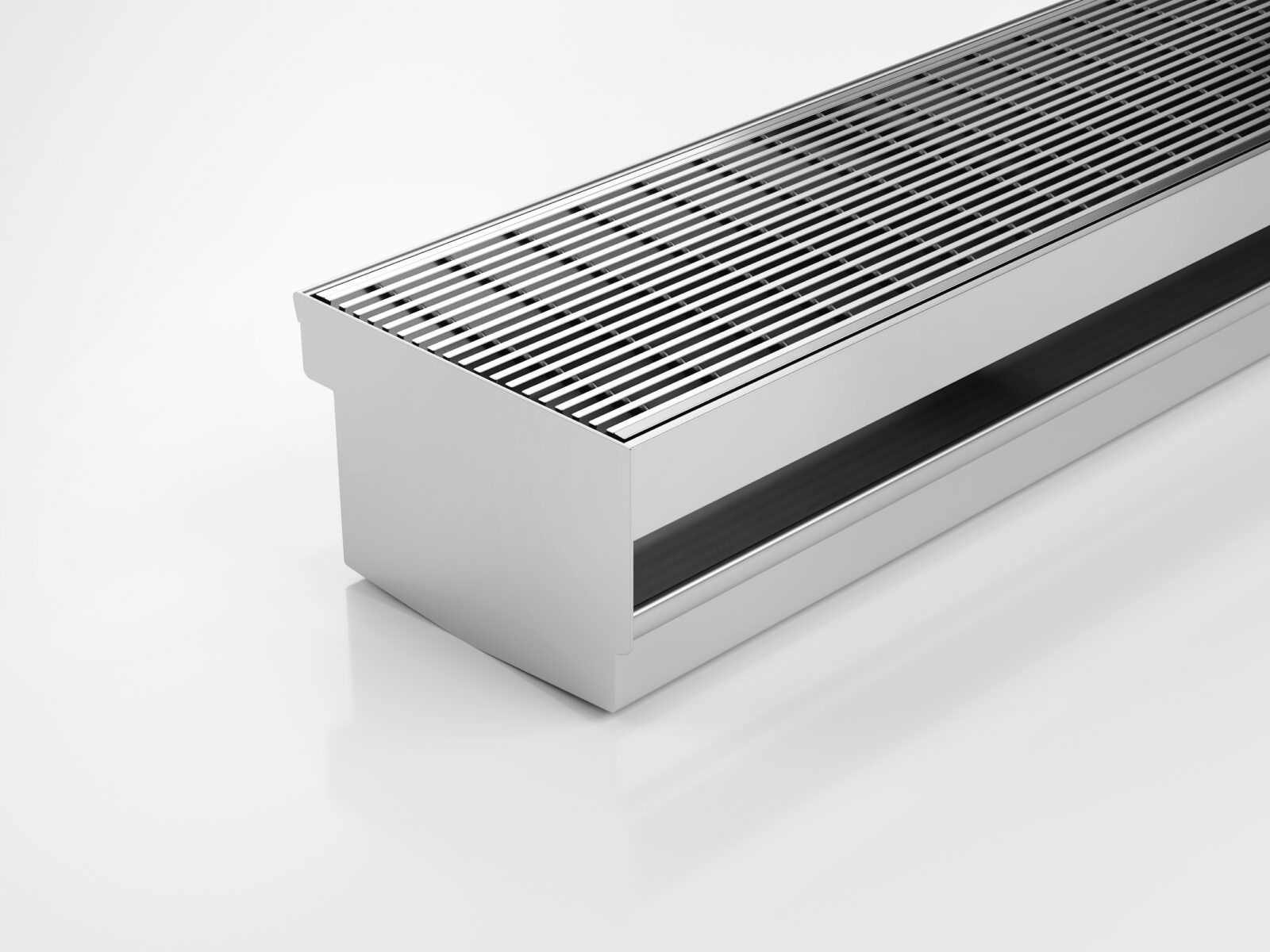

The AR is the original premium architectural grate featuring a 2mm wedge wire/2.5mm gap, constructed from low-carbon 316 marine grade stainless steel
| Product Code | 100ARTDi |
| Range | 100mm |
| Kit Type | Made to length |
| Channel Width | Custom |
| Channel Depth | Custom |
| Channel Material | Stainless Steel |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
| Threshold Sub Family | Doors with sill and sub sill |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Installation Guide |
||
| TDi Threshold Guide | (299.2 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Threshold Stormtech SS Channel2 BSS Grate | (1,683.0 KB) | ZIP | download Download |
The recommended tray depth for threshold drains is 23-53mm. It's crucial for the drain to be within this range, as an effective performance can't be guaranteed for anything outside of it. An appropriate depth ensures that water will collect and move at a suitable speed without overflowing.
| File | File Size | Download |
|---|---|---|
| Stormtech Threshold Sub Sill Order Form | (170.3 KB) | download Download |
