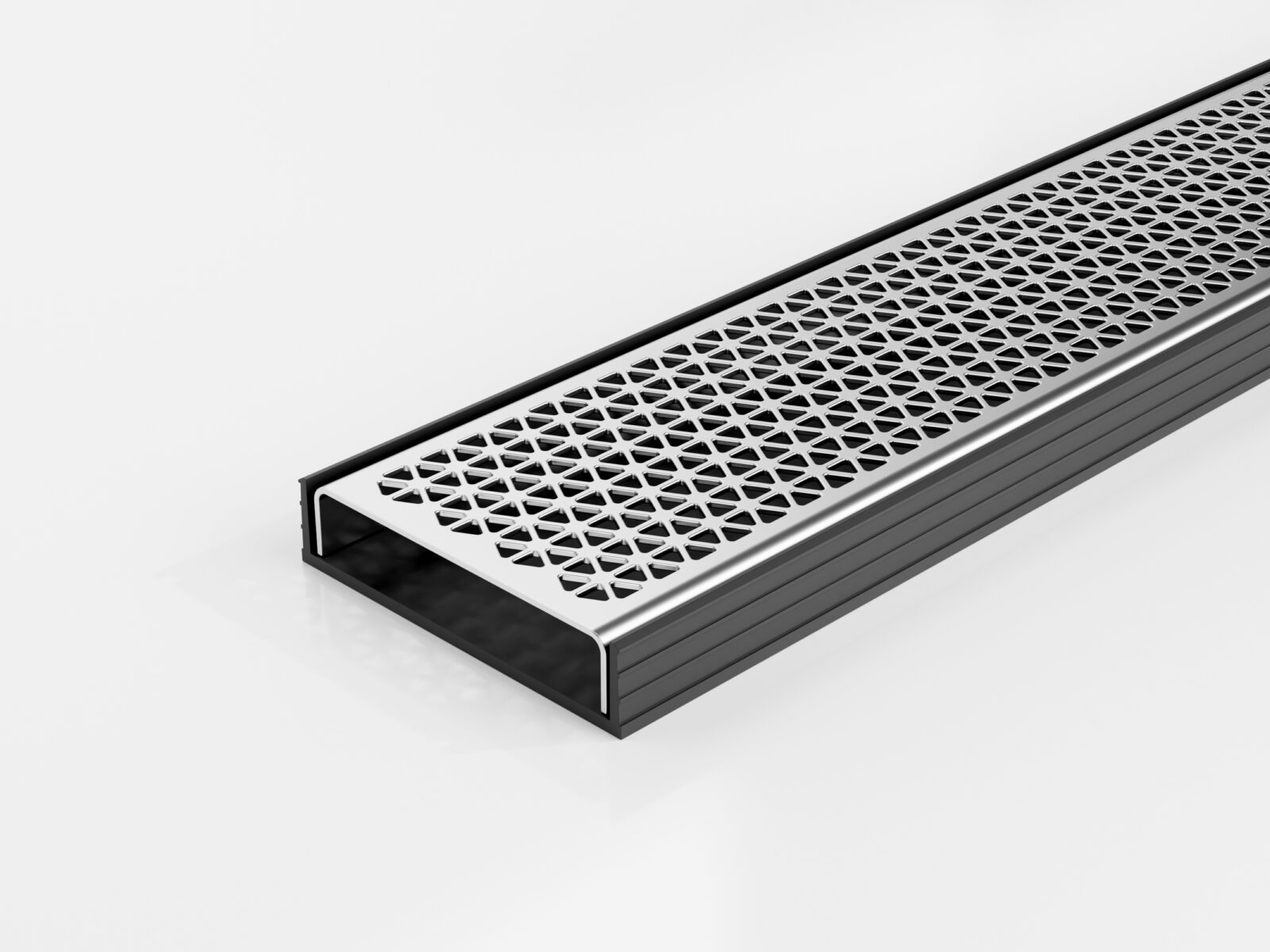

Stainless steel linear drain grate and black uPVC channel modular kit designed for architectural applications. Suitable for internal wet areas.
uPVC kits feature a slightly oversized channel with loose outlet, allowing self-selection of outlet position before cutting down channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender. See our guide to kit components for more info
| Product Code | 100MNDGBL20 |
| Range | 100mm |
| Kit Type | Modular Kit |
| Channel Width | 107mm |
| Channel Depth | 23mm |
| Length(s) | 900 mm, 1000 mm, 1200 mm, 1500 mm, 1800 mm, 2000 mm, 2200 mm, 2400 mm, 2700 mm, 3000 mm |
| Channel Material | Black uPVC |
| Greentag | |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/-2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Assembly Guide |
||
| 100 G20 Assembly | (126.8 KB) | download Download |
Bathroom Guide |
||
| 100 G20 Bathroom | (420.9 KB) | download Download |
Concrete Guide |
||
| 100 G20 Concrete | (196.0 KB) | download Download |
Offset Corner Guide |
||
| 100g20 other corner 21 | (108.1 KB) | download Download |
Threshold Guide |
||
| 100 G20 Threshold | (118.8 KB) | download Download |
Timber Floor Guide |
||
| 100 G20 timber 1 | (428.0 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech PVC Channel2 BSS Grate Modular Kit | (905.9 KB) | ZIP | download Download |
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
