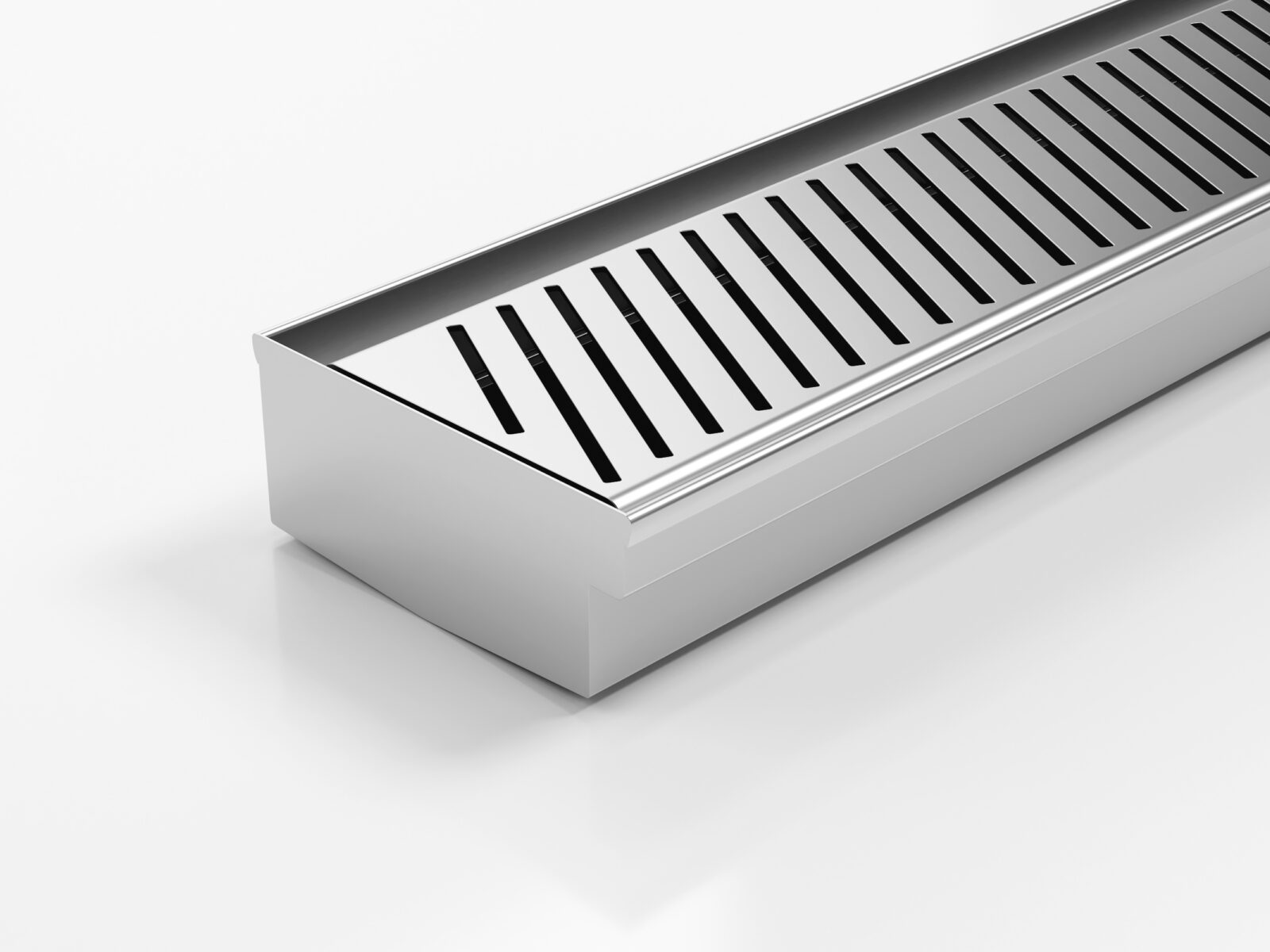

The Punched Angle Slot (PAS) grate style features equally spaced slots at an oblique orientation offering sophisticated geometric appeal. Made from low-carbon 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 100PASTDiBF |
| Range | 100mm |
| Kit Type | Made to length |
| Channel Width | Custom |
| Channel Depth | Custom |
| Channel Material | 316 Stainless Steel |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
| Threshold Sub Family | Bifold doors |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/- 2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Installation Guide |
||
| 100 TDiBF Installation Guide | (94.9 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Threshold Bifold Stormtech SS Channel2 BSS Grate | (796.1 KB) | ZIP | download Download |
The recommended tray depth for threshold drains is 23-53mm. It's crucial for the drain to be within this range, as an effective performance can't be guaranteed for anything outside of it. An appropriate depth ensures that water will collect and move at a suitable speed without overflowing.
| File | File Size | Download |
|---|---|---|
| Stormtech Threshold Bifold Order Form MR F 8 5 1 R0 | (350.2 KB) | download Download |
