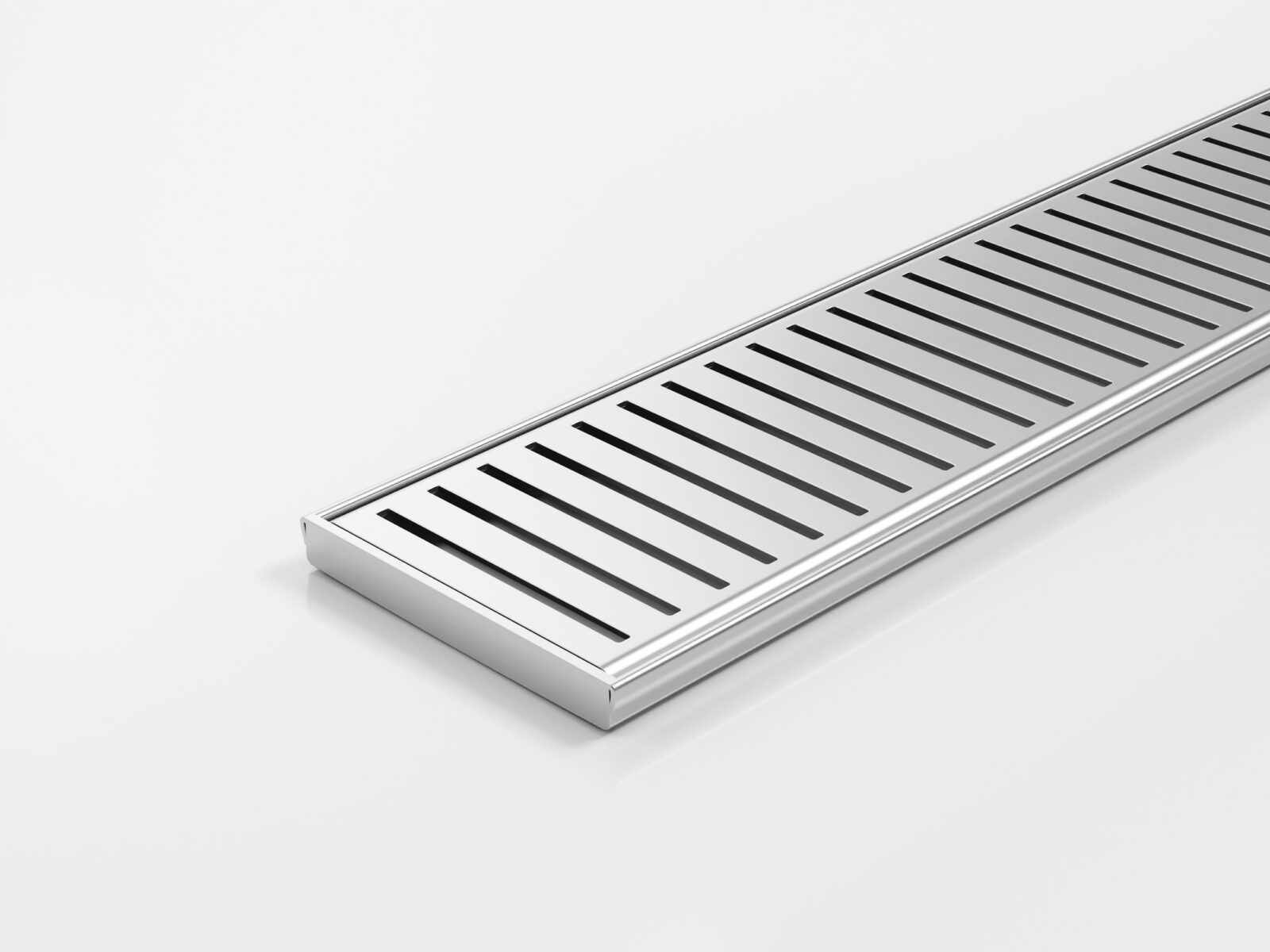

The Punched Perpendicular Slot (PPS) grate style features perpendicular slots which form a strict, grid-like repetition. Rigid lines project modernity, reliability, and understated elegance. Made from low-carbon 316 marine grade stainless steel.
| Product Code | 100PPSi12MTL |
| Range | 100mm |
| Kit Type | Made to length |

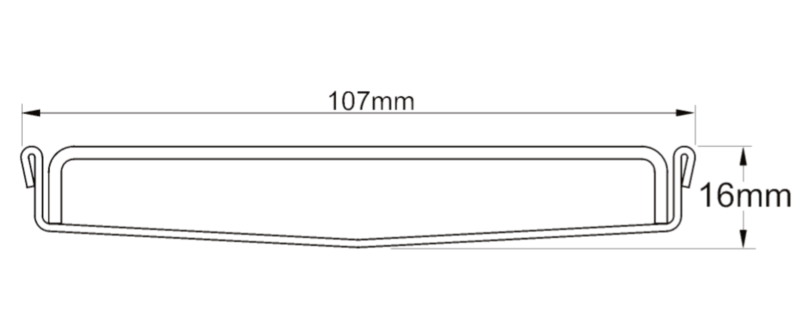

| Channel Width | 106mm |
| Channel Depth | 16mm |
| Channel Material | Stainless Steel |
| Greentag | |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Threshold Guide |
||
| 100i12MTL Threshold Guide | (106.4 KB) | download Download |
Timber Floor Guide |
||
| 100i12 MTL Timber Guide | (175.7 KB) | download Download |
Concrete Guide |
||
| 100i12 MTL Concrete Guide | (119.5 KB) | download Download |
Bathroom Guide |
||
| 100i12 MTL Bathroom Guide | (360.6 KB) | download Download |
Assembly Guide |
||
| MTL Channel Installation Guide (Over 3m) | (76.7 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Made To Length | (913.2 KB) | ZIP | download Download |
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
