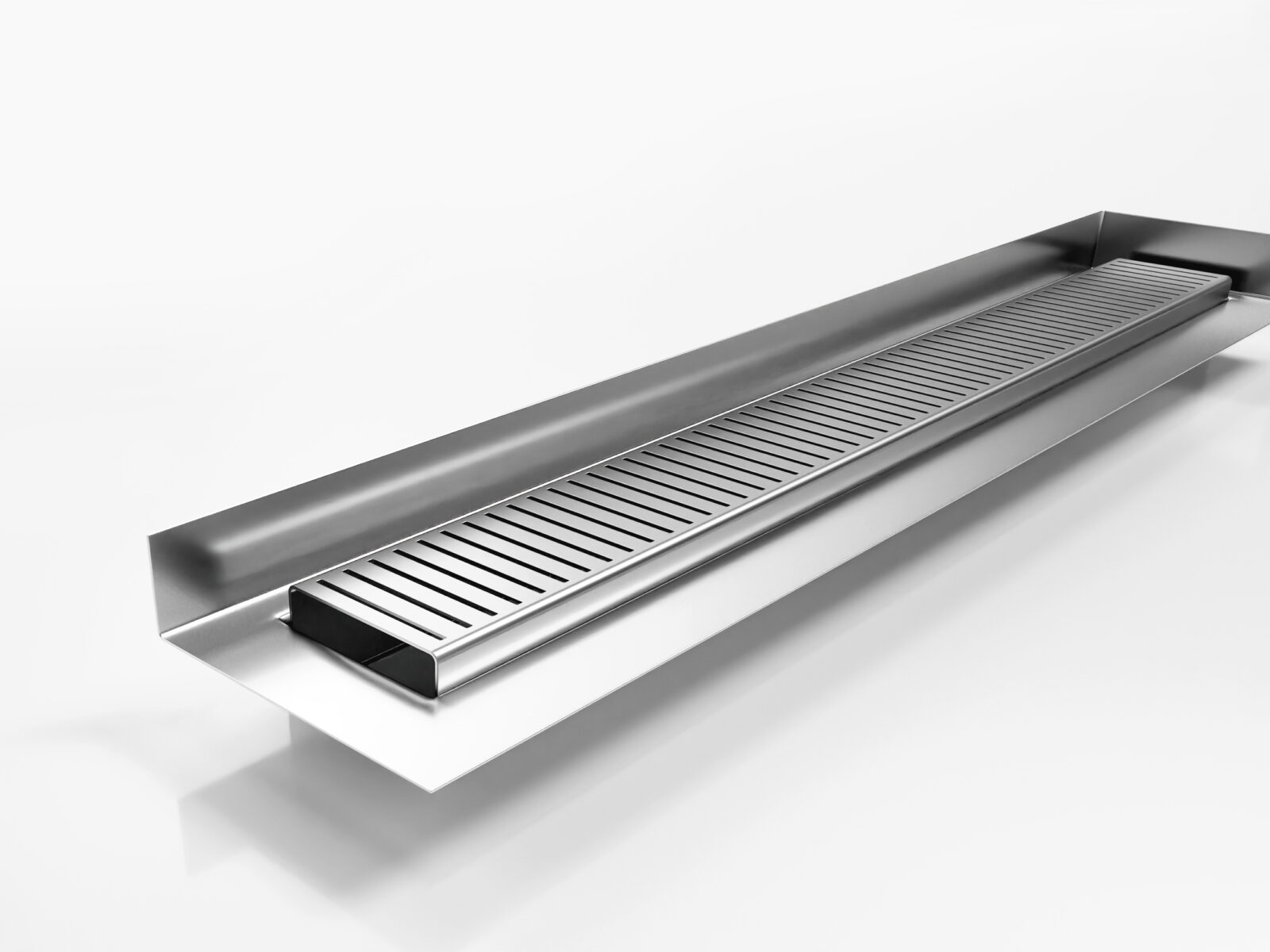

The Punched Perpendicular Slot (PPS) grate style features perpendicular slots which form a strict, grid-like repetition. Rigid lines project modernity, reliability, and understated elegance. Made from low-carbon 316 marine grade stainless steel.

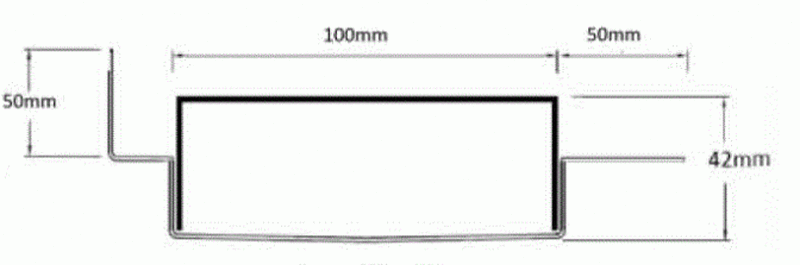

| Product Code | 100PPSiMTLF |
| Range | 100mm |
| Kit Type | Made to length |
| Channel Width | Custom |
| Channel Depth | Custom |
| Channel Material | 316 Stainless Steel |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
Grates longer than 1500mm supplied in sections. Channels over 3000mm supplied in sections with joiner. +/- 2mm tolerance on dimensions.
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Installation Guide |
||
| MTLF Wall Installation Guide | (88.5 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Tile Flange Stormtech SS Channel2 BSS Grate Made To Length | (816.7 KB) | ZIP | download Download |
| File | File Size | Download |
|---|---|---|
| Stormtech MTLF Tile Flange Order Form | (1,545.2 KB) | download Download |
