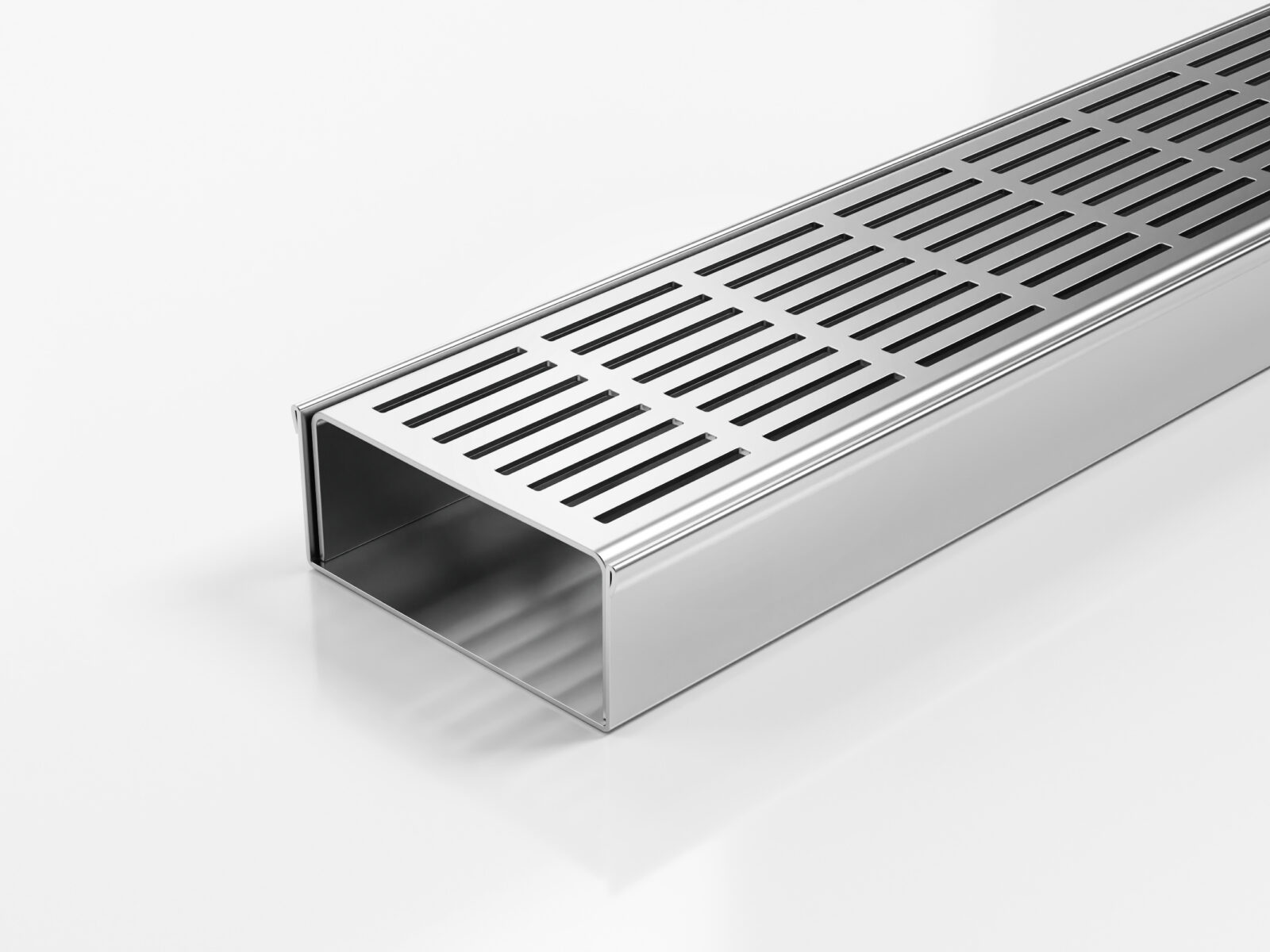

The Punched Slot (PS) grate style features repetitive parallel slots which create a rhythmic linear pattern, perfectly suited to contemporary aesthetics. Made from low carbon, 316 marine grade stainless steel.
| Product Code | 100PSi40-1000 |
| Range | 100mm |
| Kit Type | Modular Kit |
| Channel Width | 106mm |
| Channel Depth | 42mm |
| Length(s) | 1000 mm, 1500 mm, 2000 mm, 2500 mm, 3000 mm, 3500 mm, 4000 mm, 4500 mm, 5000 mm, 5500 mm, 6000 mm |
| Channel Material | Stainless Steel |
| Greentag | |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Assembly Guide (Over 2m) |
||
| 100i40 Assembly Guide (Over 2m) | (219.7 KB) | download Download |
Bathroom Guide |
||
| 100i40 Bathroom Guide | (545.6 KB) | download Download |
Concrete Guide |
||
| 100i40 Concrete Guide | (189.3 KB) | download Download |
Threshold Guide |
||
| 100i40 Threshold Guide | (116.6 KB) | download Download |
Timber Floor Guide |
||
| 100i40 Timber Guide | (143.1 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Modular Kit | (914.8 KB) | ZIP | download Download |
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
