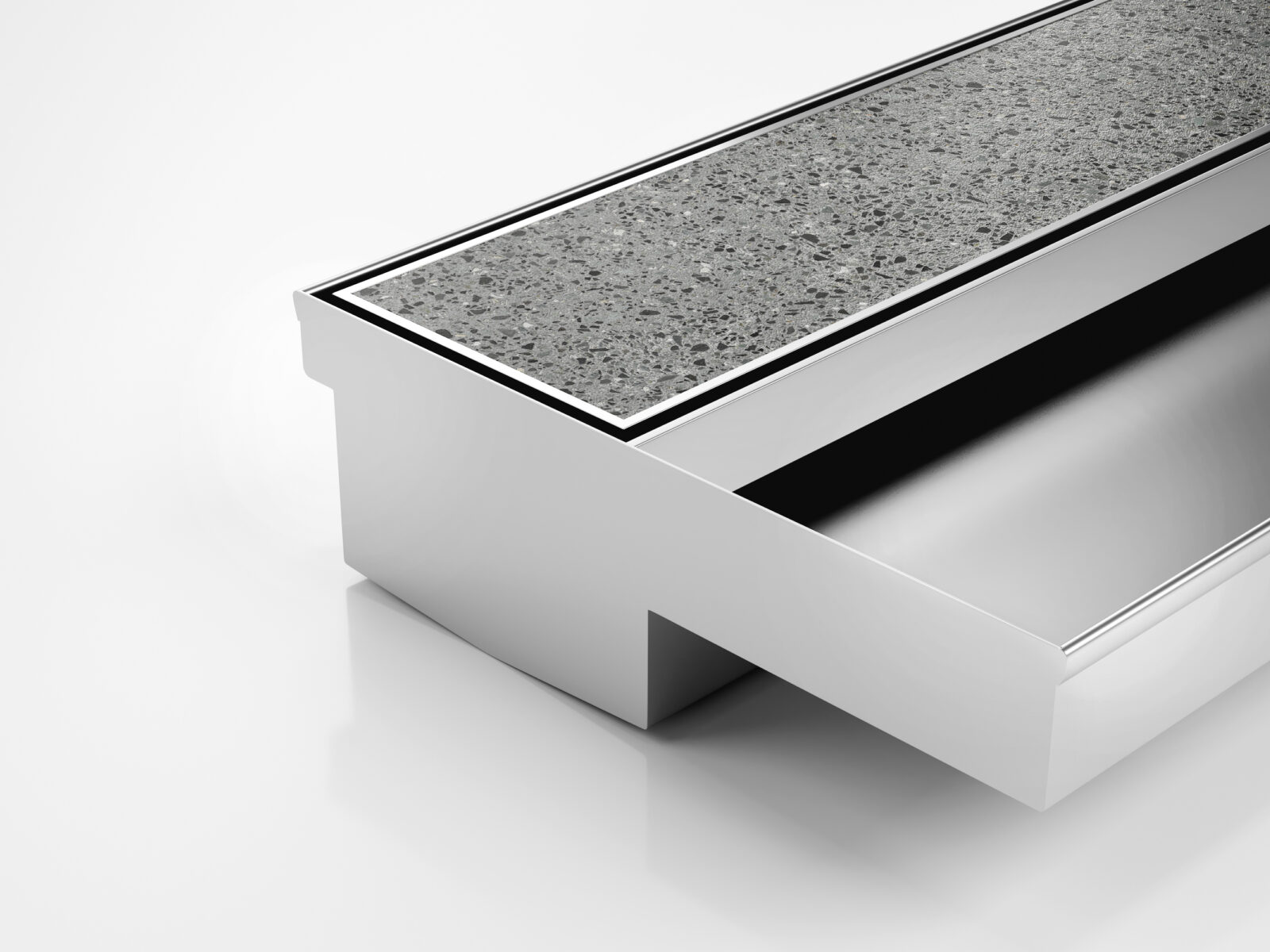

The Ti is a Tile Insert grate, a popular style for modern architecture due to it's discreet integration in tiled floor applications. Made from low-carbon 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 100TiTDiS |
| Range | 100mm |
| Kit Type | Made to length |
| Channel Width | Custom |
| Channel Depth | Custom |
| Channel Material | Stainless Steel |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65, DN80, DN100 |
| Suits Tile Depth | Tiles up to 12mm |
| Threshold Sub Family | Sill only doors |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Installation Guide |
||
| TDiS Threshold Guide | (186.1 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Threshold Sill Stormtech SS Channel2 BSS Grate | (1,057.8 KB) | ZIP | download Download |
The recommended tray depth for threshold drains is 23-53mm. It's crucial for the drain to be within this range, as an effective performance can't be guaranteed for anything outside of it. An appropriate depth ensures that water will collect and move at a suitable speed without overflowing.
| File | File Size | Download |
|---|---|---|
| Premium Threshold Sill Only Ti AA | (164.7 KB) | download Download |
