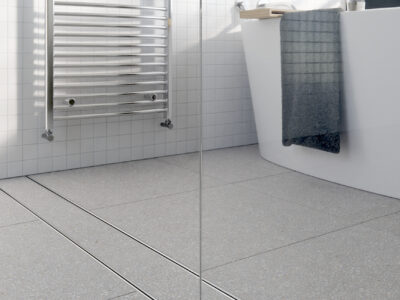

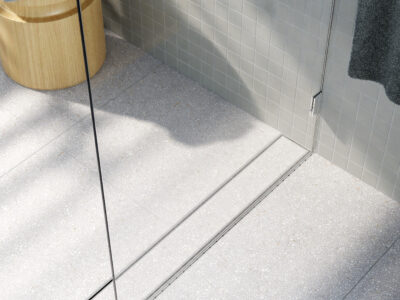

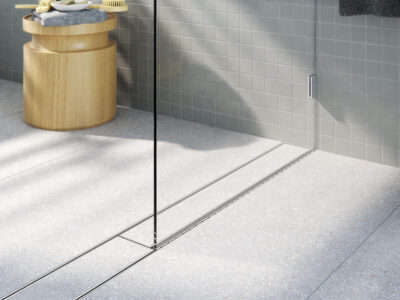

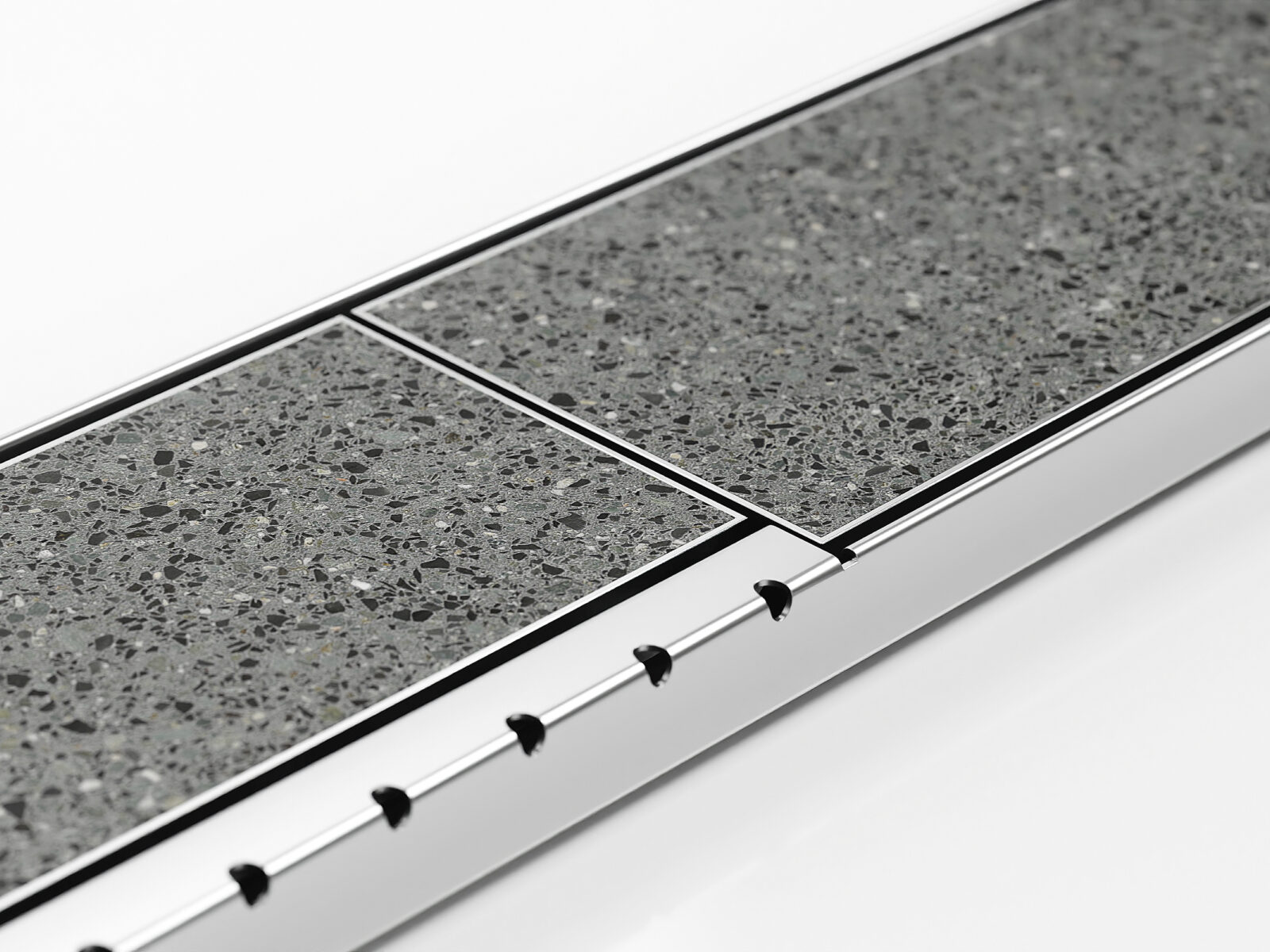

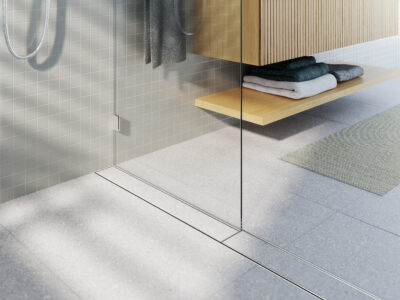

The Ti is a Tile Insert grate, a popular style for modern architecture due to it's discreet integration in tiled floor applications. Made from low-carbon 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 120SCSTiiMTL |
| Range | 120mm |
| Kit Type | Made to length |

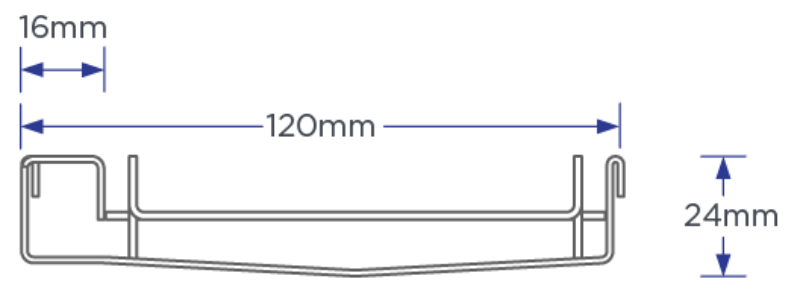

| Channel Width | 120mm |
| Channel Depth | 24mm |
| Channel Material | Stainless Steel |
| Watermark | |
| Compatible Pipes | DN80, DN100 |
| Suits Tile Depth | Tiles up to 10mm |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Bathroom Guide |
||
| 120SCS Bathroom Guide | (200.3 KB) | download Download |
Caulking Guide |
||
| 120SCS Caulking Guide | (156.0 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain SCS Channel Stormtech SS Channel2 BSS Grate Made To Length | (1,070.4 KB) | ZIP | download Download |
120SCS supports 200 kg per metre and suits glass up to 10 mm thick on standard SCS channels.
For thicker/heavier glass, a customised solution (SCS-MTS) available.
| File | File Size | Download |
|---|---|---|
| 120 SCS MTL Order Form 0 | (320.4 KB) | download Download |
| Dual Sided 120 SCS MTL Order Form | (461.9 KB) | download Download |
| Dual Sided 120 SCS Tii MTL Order Form | (153.1 KB) | download Download |
| Left Side 120 SCS Tii MTL Order Form | (188.8 KB) | download Download |
| Right Side 120 SCS Tii MTL Order Form | (185.7 KB) | download Download |
