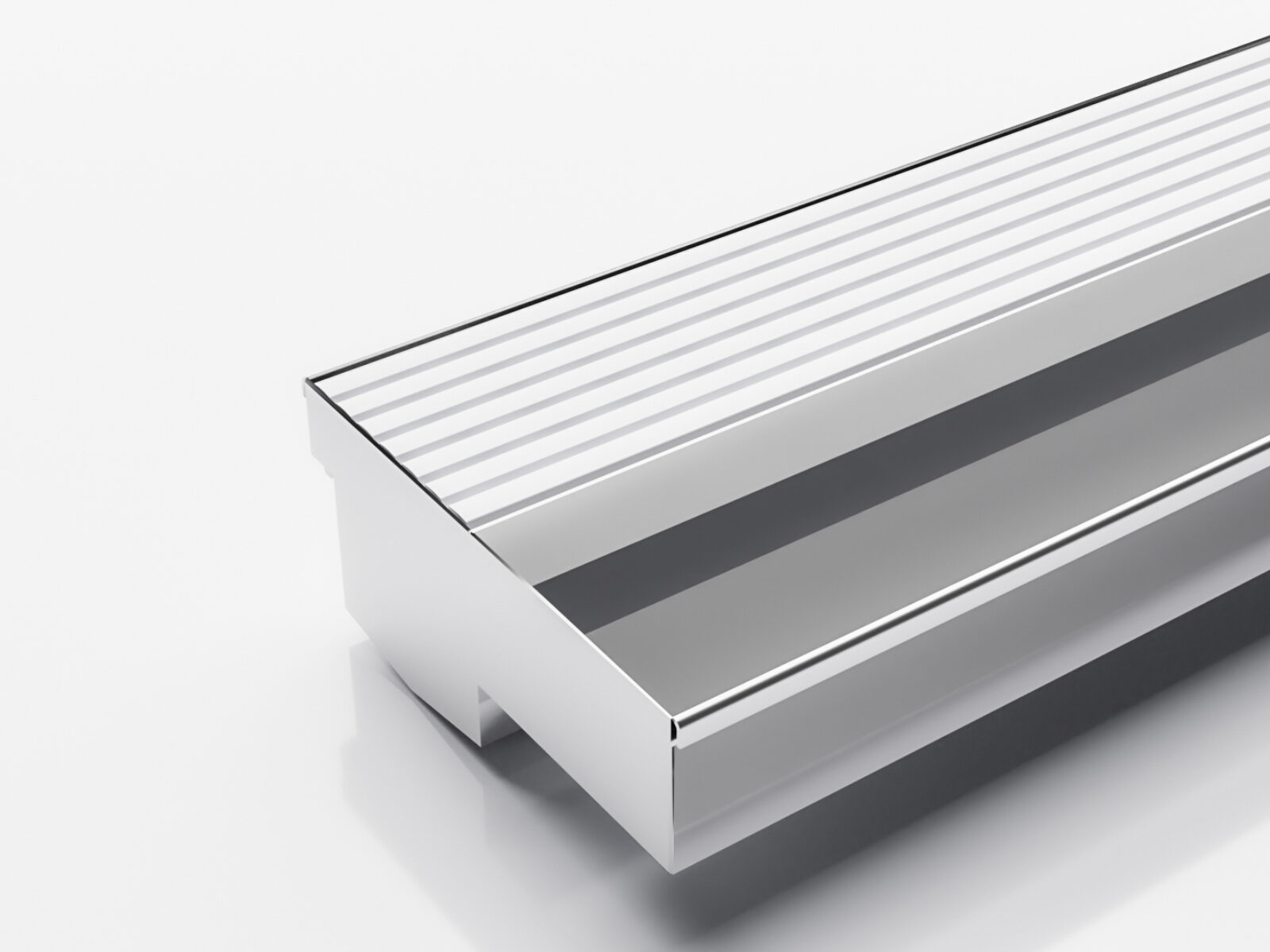

The AA Wave Grate is a Good Design Award winning innovation. It's unique wave profile is cleverly designed to conceal the drainage channel without sacrificing hydraulic performance. Made from low embodied carbon ASI certified anodized aluminium, it's lightweight while offering excellent strength and is suited to all indoor and outdoor applications.
| Product Code | 65AATDiS |
| Range | 65mm |
| Kit Type | Made to length |
| Channel Width | Custom |
| Channel Depth | Custom |
| Channel Material | Stainless Steel |
| Watermark | |
| Compatible Pipes | DN40, DN50 |
| Threshold Sub Family | Sill only doors |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Installation Guide |
||
| TDiS Threshold Guide | (186.1 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Threshold Sill Stormtech SS Channel2 BSS Grate | (1,057.8 KB) | ZIP | download Download |
The recommended tray depth for threshold drains is 23-53mm. It's crucial for the drain to be within this range, as an effective performance can't be guaranteed for anything outside of it. An appropriate depth ensures that water will collect and move at a suitable speed without overflowing.
| File | File Size | Download |
|---|---|---|
| Premium Threshold Sill Only Ti AA | (164.7 KB) | download Download |
