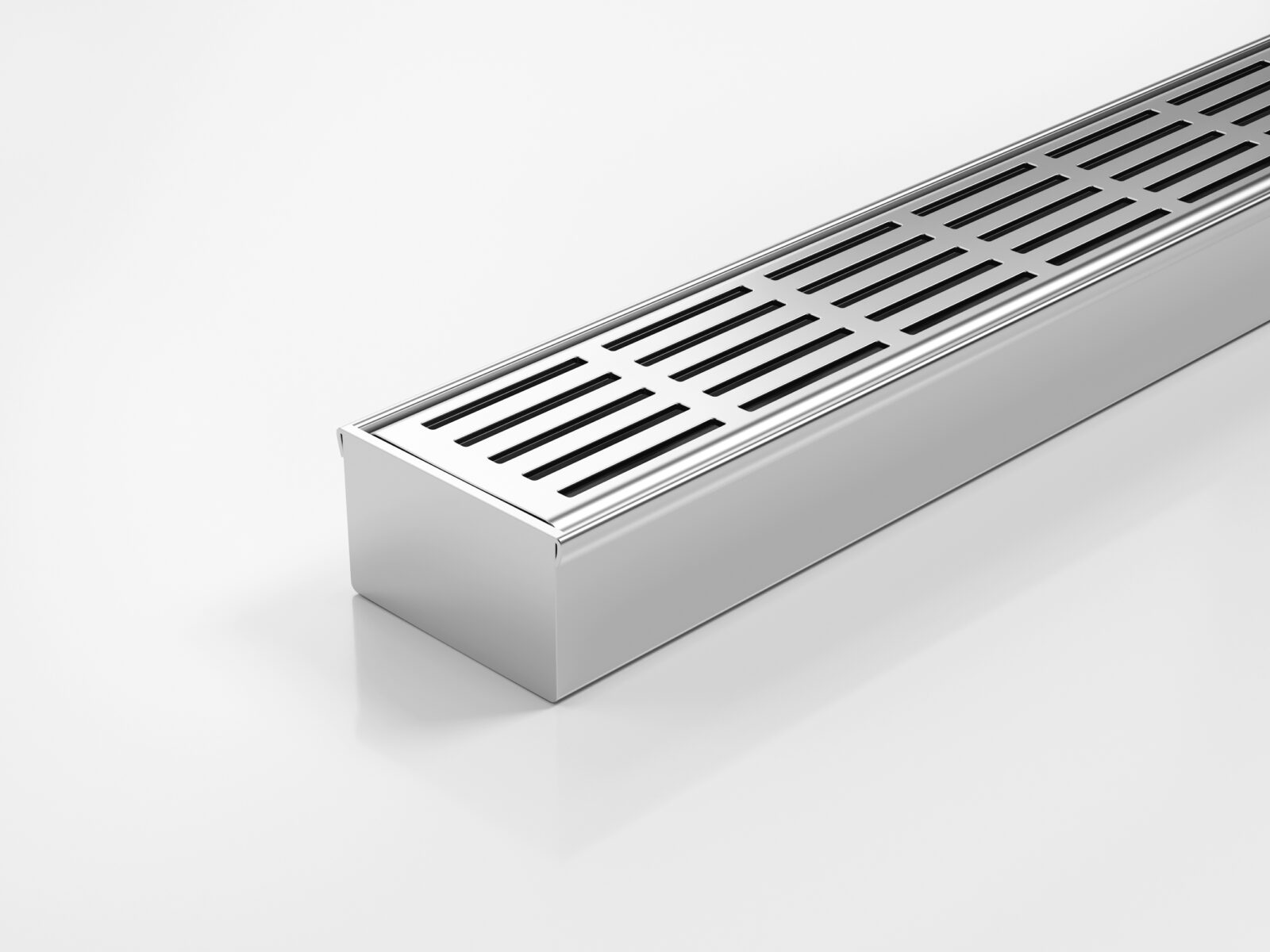

The Punched Slot (PS) grate style features repetitive parallel slots which create a rhythmic linear pattern, perfectly suited to contemporary aesthetics. Made from low carbon, 316 marine grade stainless steel.
| Product Code | 65PSi40MTL |
| Range | 65mm |
| Kit Type | Made to length |
| Channel Width | 72mm |
| Channel Depth | 42mm |
| Channel Material | Stainless Steel |
| Greentag | |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65 |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Bathroom Guide |
||
| 65i40 MTL Bathroom | (233.2 KB) | download Download |
Concrete Guide |
||
| 65i40 MTL Concrete | (207.6 KB) | download Download |
Threshold Guide |
||
| 65i40 MTL Threshold | (136.2 KB) | download Download |
Timber Floor Guide |
||
| 65i40 MTL Timber 1 | (135.3 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Made To Length | (913.2 KB) | ZIP | download Download |
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
| File | File Size | Download |
|---|---|---|
| Stormtech MTL Order Form | (412.8 KB) | download Download |
| Stormtech MTL Multiple Outlets Order Form | (539.9 KB) | download Download |
