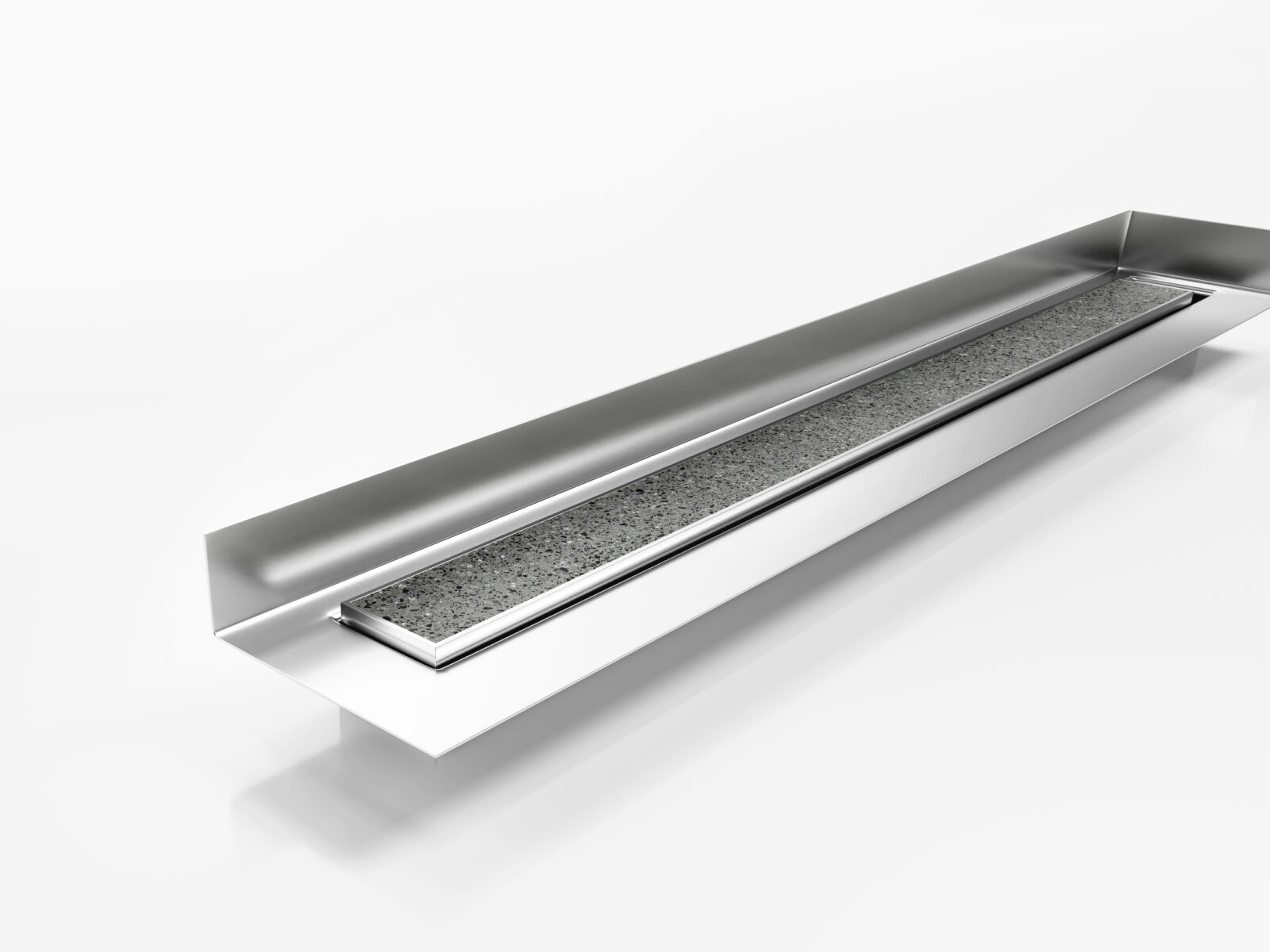

The Ti is a Tile Insert grate, a popular style for modern architecture due to it's discreet integration in tiled floor applications. Made from low-carbon 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 65TiiMTLF |
| Range | 65mm |
| Kit Type | Made to length |
| Channel Width | Custom |
| Channel Depth | Custom |
| Channel Material | Stainless Steel |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65 |
| Suits Tile Depth | Tiles up to 25mm |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Installation Guide |
||
| MTLF Wall Installation Guide | (88.5 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Tile Flange Stormtech SS Channel2 BSS Grate Made To Length | (816.7 KB) | ZIP | download Download |
| File | File Size | Download |
|---|---|---|
| Stormtech MTLF Tile Flange Order Form | (1,545.2 KB) | download Download |
