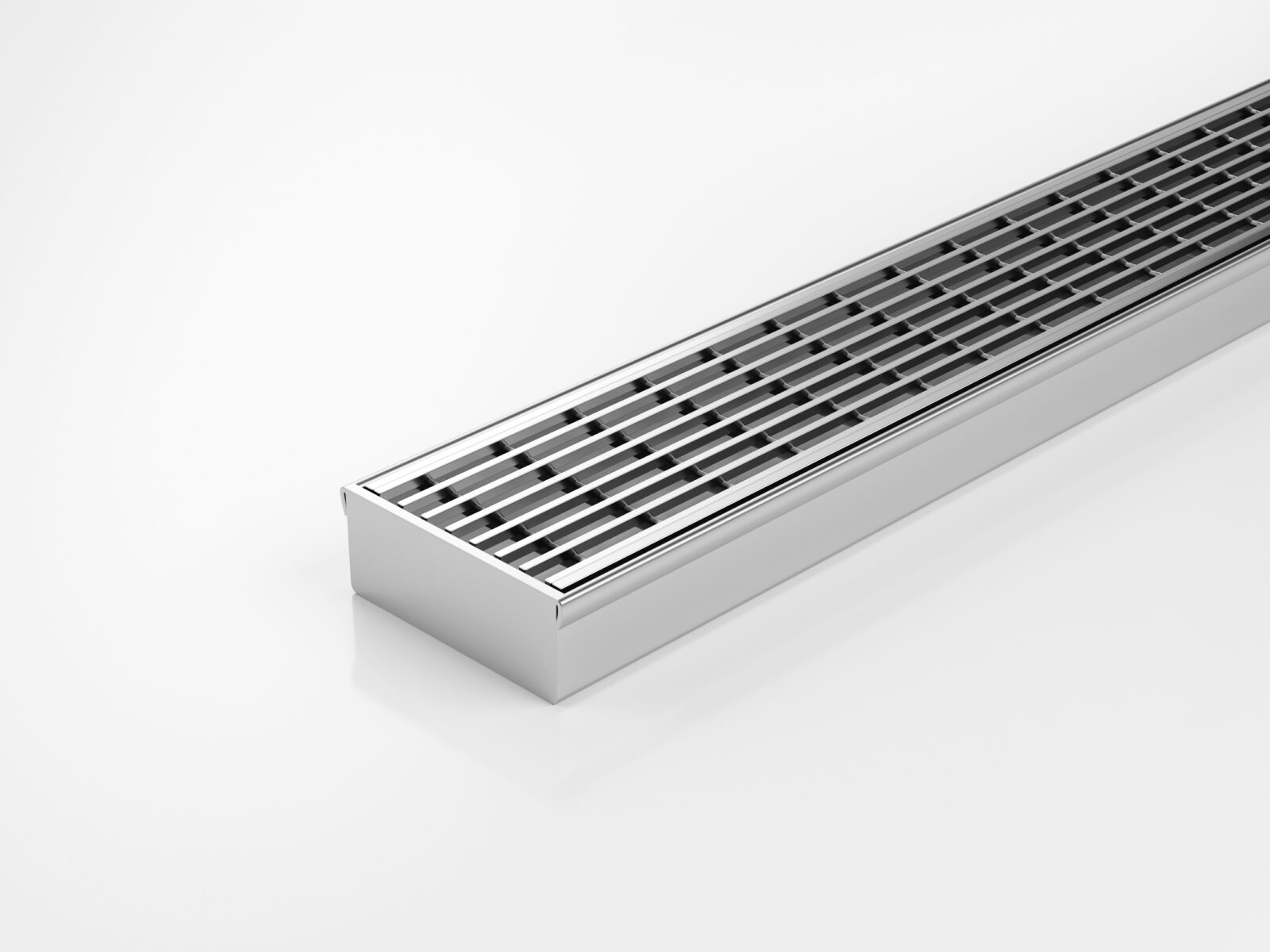

The Standard (TR) wedge wire grate style, feature a 3mm wire/5mm gap and offers an economical solution without compromising aesthetic elegance. Made from 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
| Product Code | 65TRi25MTL |
| Range | 65mm |
| Kit Type | Made to length |
| Channel Width | 72mm |
| Channel Depth | 27mm |
| Channel Material | Stainless Steel |
| Greentag | |
| Watermark | |
| Compatible Pipes | DN40, DN50, DN65 |
| File | File Size | Download |
|---|---|---|
| Product Specifications | download Download | |
Bathroom Guide |
||
| 65i25 MTL bathroom 1 | (234.1 KB) | download Download |
Concrete Guide |
||
| 65i25 MTL Concrete 7 | (289.8 KB) | download Download |
Threshold Guide |
||
| 65i25 MTL threshold 7 | (181.1 KB) | download Download |
Timber Floor Guide |
||
| 65i25 MTL timber 7 | (271.6 KB) | download Download |
| File | File Size | File Type | Download |
|---|---|---|---|
| Drain Channel Stormtech SS Channel2 BSS Grate Made To Length | (913.2 KB) | ZIP | download Download |
Linear drains require only one gradient fall, while floor wastes require a four-way gradient fall. Linear drains also allow for larger format tiles and hobless shower designs.
Stormtech products are made from low embodied carbon 316 stainless steel, low embodied carbon anodized aluminium, and certified Best Environmental Practice PVC.
Linear drains sit above the waterproofing layer. Waterproofing must be installed by a qualified/ licensed professional.
PVC kits are lighter and easier to cut, while stainless steel kits are recommended for outdoor use due to greater durability under UV and extreme conditions.
| File | File Size | Download |
|---|---|---|
| Stormtech MTL Order Form | (412.8 KB) | download Download |
| Stormtech MTL Multiple Outlets Order Form | (539.9 KB) | download Download |
